Tab URL Blocker 404

Solution Overview

Tab URL Blocker 404 is a Chrome Manifest V3 extension that enforces website blocking using Chrome’s declarativeNetRequest engine. It supports optional audit and reporting through a local or centrally hosted listener service.

The solution consists of two components:

For ACCELQ automation use cases, it is recommended to start the listener service on the same machine where the ACCELQ agent is installed and running.

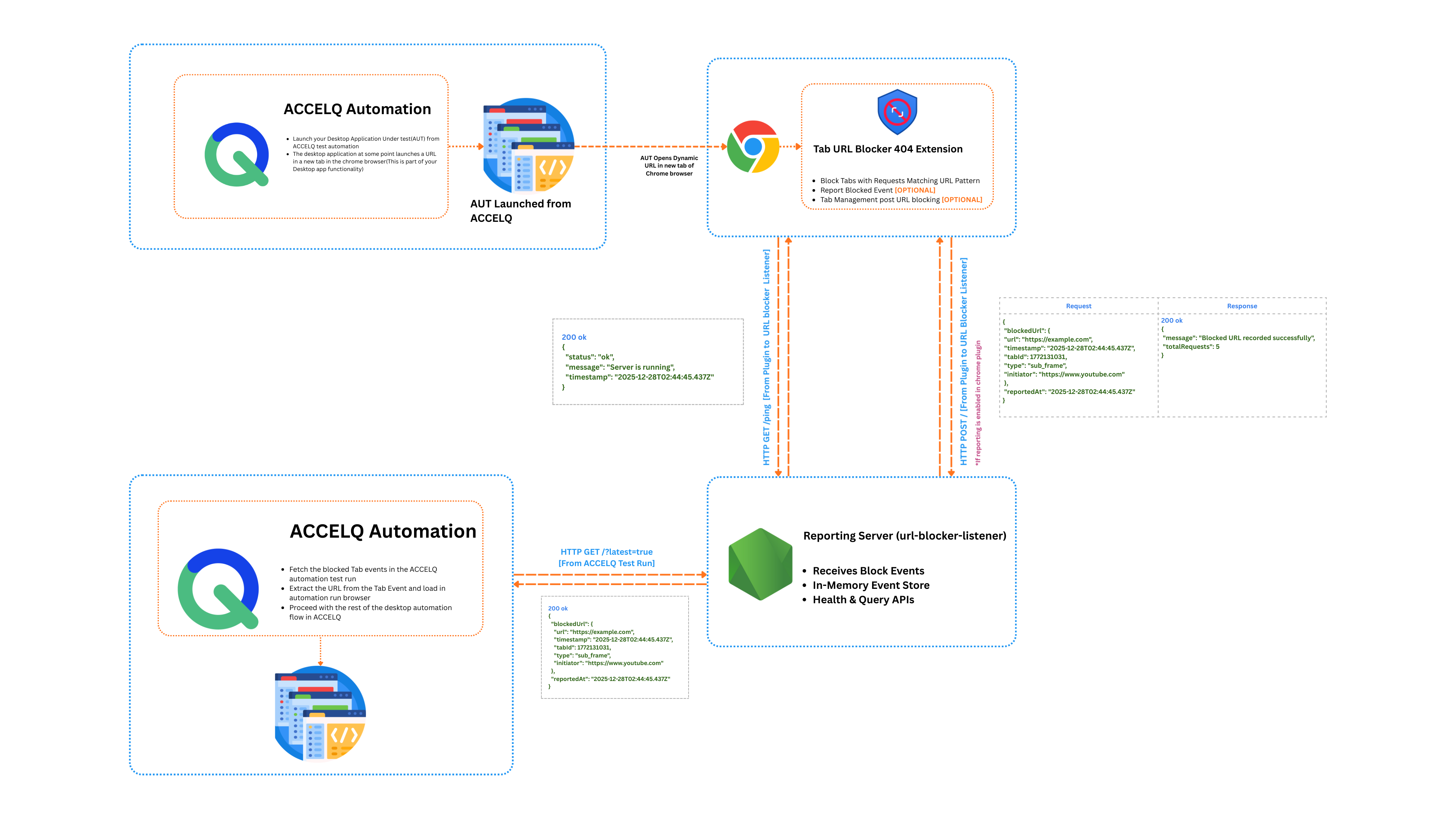

Architecture Diagram

Tab URL Blocker 404 Plugin Capabilities

Download: https://chromewebstore.google.com/detail/tab-url-blocker-404/kokjfejdghjdinfjhhpbihljmcfpjaci

Core Functionality

• Blocks navigation requests that match user-defined URL patterns
• Uses Manifest V3 and Chrome’s declarative rules engine
• No request interception proxies
• No content-level traffic inspection
• Blocking is enforced natively by Chrome

Optional Capabilities

Reporting (Optional)
Sends blocked URL events to a user-configured URL Blocker Listener endpoint over HTTP POST. Reporting is enabled only when the listener service is running, configured, and reachable.

Auto-close Tabs (Optional)
Automatically closes tabs after a configurable delay when a blocked URL is accessed.

Data Flow Model

Blocking Flow (Local-Only)

• User configures URL patterns in the extension for tab blocking
• Extension updates declarativeNetRequest rules
• Chrome blocks matching requests locally within the browser

Result: All blocking is performed inside the browser. No network traffic is generated.

Reporting Flow (Opt-In)

• Extension validates listener availability via /ping
• If enabled:
• Block events are sent to the listener via HTTP POST
• Listener stores events in memory for retrieval

Security boundary: Reporting introduces a network path. If reporting is disabled, no block data leaves the browser.

Permissions and Security Posture

Security rationale: These permissions are broad by necessity for network-level blocking. Risk is mitigated architecturally by using MV3 declarative rules, not runtime interception, content injection, or script-based scraping.

URL Blocker Listener

What the Listener Is

The listener is distributed as a prebuilt standalone executable for Windows, Linux, and macOS. It does not require Node.js installation on endpoints.

Download: https://github.com/ajoealex/url-blocker/releases

Functional Behavior

• Starts an HTTP service on a configurable port
• Receives blocked URL events from the extension
• Stores events in a FIFO in-memory queue
• Exposes endpoints for health checks and event queries

Configuration Model

• app.properties must be placed alongside the executable
• Configuration is file-based and local to the deployment

Enterprise Security Controls (Recommended)

• Bind service to 127.0.0.1 by default
• Keep memory-only storage unless persistence is explicitly required

Extension Allowlisting

Admins to whitelist the extension

Extension ID: kokjfejdghjdinfjhhpbihljmcfpjaci

Plugin URL: https://chromewebstore.google.com/detail/tab-url-blocker-404/kokjfejdghjdinfjhhpbihljmcfpjaci

Network and Privacy Disclosure

Network Behavior

• Default: No outbound network calls
• Optional: When reporting is enabled:
• HTTP POST to listener endpoint
• /ping used for health validation

Data Captured (Reporting Only)

• URL
• Timestamp
• Tab ID
• Request type
• Initiator

Data Retention

• In-memory only
• Non-persistent by default
• Persistence requires explicit implementation

Listener API Surface

APIs Invoked by the Chrome Extension

These APIs are called only when reporting is enabled.

GET /ping
Purpose: Connectivity and health validation before enabling reporting
Invoked by: Chrome extension to listener service
Usage: Server availability check

Response:
{
  "status": "ok",
  "message": "Server is running"
}

POST /
Purpose: Report blocked URL event to the listener service
Invoked by: Chrome extension

Request Body:
{
  "blockedUrl": {
    "url": "https://example.com",
    "timestamp": "2026-01-01T10:00:00.000Z",
    "tabId": 123,
    "type": "main_frame",
    "initiator": "https://google.com"
  },
  "reportedAt": "2026-01-01T10:00:00.000Z"
}

Response:
{
  "message": "Blocked URL recorded successfully",
  "totalRequests": 5
}

APIs Exposed by the Listener Service

These APIs are not used by the plugin and are intended for administrators, monitoring tools, or integrations.

GET /
Purpose: Retrieve all stored tab block events

Response:
{
  "requests": [
    {
      "url": "https://example.com",
      "timestamp": "2025-12-28T02:44:45.437Z",
      "tabId": 1772131031,
      "type": "sub_frame",
      "initiator": "https://www.youtube.com",
      "reportedAt": "2025-12-28T02:44:45.437Z"
    }
  ],
  "totalRequests": 1
}

GET /?latest=true
Purpose: Retrieve the most recent tab block event

Response:
{
  "latest": {
    "url": "https://example.com",
    "timestamp": "2025-12-28T02:44:45.437Z",
    "tabId": 1772131031,
    "type": "sub_frame",
    "initiator": "https://www.youtube.com",
    "reportedAt": "2025-12-28T02:44:45.437Z"
  },
  "totalRequests": 1
}

DELETE /cleanup
Purpose: Clear in-memory event store

Response:
{
  "message": "All blocked URL requests cleared",
  "clearedCount": 10
}

GET /ping
Purpose: Health check endpoint
Consumers: Tab URL Blocker 404 plugin

Response:
{
  "status": "ok",
  "message": "Server is running"
}
